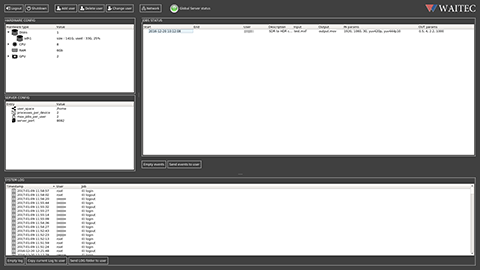

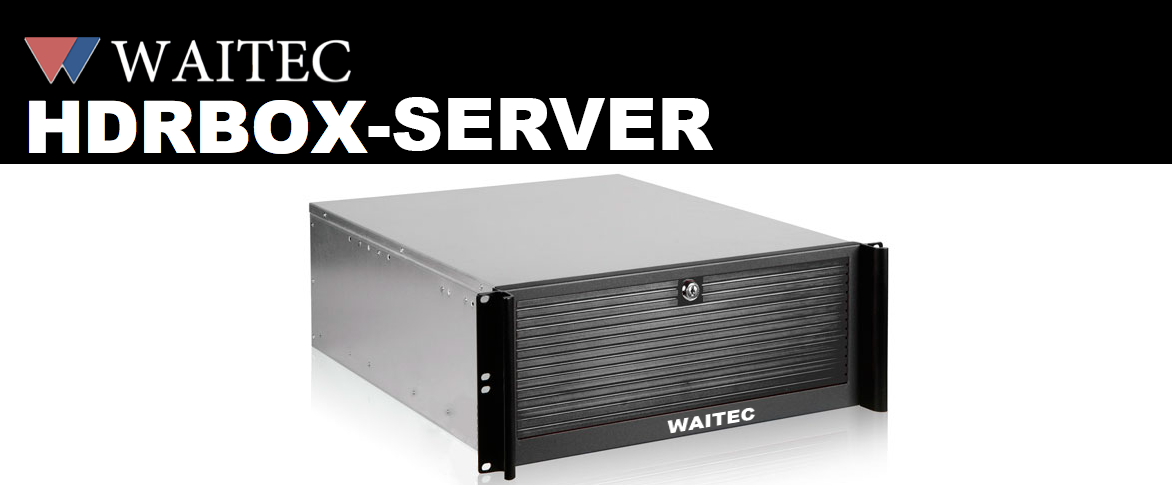

Our innovative HDRBox Server for the SDR to HDR conversion allows to expand the Dynamic Range of standard movies to be correctly viewed on the new technology displays. Our solution provides real-time performances, while it is providing a simple GUI where any kind of YUV sequence is easily converted into a HDR sequence preserving the original artistic intent. We are offering two versions. The former, it is a cloud based solution and it is ideal to be integrate in your existing environment. The latter, it is a real-time version that is ideal when converting om-live your TV Programs.

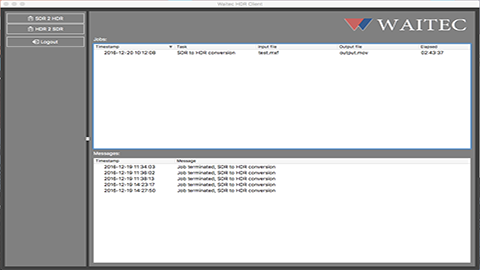

Moreover, our dedicated client software, will help you in performing all the conversions format everywhere in your network in a very simple manner.


MAIN FEATURES

  1. Multiple conversions SDR to HDR
  2. Intuitive GUI
  3. BT.709 and BT.2020 color spaces
  4. BT.2100 (PQ/Perceptual Quantizer or HLG/Hybrid Log )
  5. Realtime SDR to HDR conversion
  6. Ready to work with HDR display
  7. All functions easily software up-gradable

SPECIFICATIONS

INPUT/OUTPUT FILE FORMATS
YUV 420, 422, 444
MXF
VIDEO OUT
YCbCr 422, 444
MXF
BT.2100 compliant
PQ/Perceptual Quantizer
HLG/Hybrid Log
INTERFACES
Video connectors: DVI, HDMI, DISPLAY PORT
UHD/SD SDI Out
Ethernet 10/100/1000 Mb/s
USB 2.0 and USB 3.0 ports
FILE TRANSFER
Dedicated client software
INTERNAL STORAGE
2TB Hard Disk (Minimum configuration)
Multiple SSD Disk
POWER
Consumption: Redundant AC power 500W max
Input Voltage: 110 – 240AC
PHYSICAL
482.6 mm (W) x 177.8 mm (H) x 553 mm (D)
